ELECTRONICS R/C AUXILLIARY UNITS |
|
PART # |
DESCRIPTION |
PRICE |
|
HS-3 |
MORSE SIGNAL LIGHT GENERATOR 5-30 V |
|
|
HS-4 |
FLASHER 1 FLASH LAMPS ON/OFF SIDE BY SIDE 2-12 V |
|
|
HS-5 |
FLASHER 2 DESIGNED TO FLASH LEDS 2-12 V |
|
|
HS-6 |
FLASHER 3 SAME AS HS-4 WITH ON ONLY OUTPUT 2-12 V |
|
|
HS-7 |
FLICKERING OIL LAMP SIMULATOR 6 V |
|
|
HS-8 |
AUTO BILGE PUMP SWITCHER 6-12 V |
|
|
HS-9 |
SMOKE GENERATOR 12 V |
|
|
HS-10 |
SMOKE OIL 4 OZ. (125 ML) |
|
|
HS-11 |
RADAR SCANNER ROTATION UNIT MOTOR/GEAR BOX-1.5 V |
|
|
ACT-7 |
MARINE MOTOR MIXER CALL FOR DETAILS |
|
|
ACT-10 |
SINGLE RELAY SWITCHER 2-24 V |
|
|
ACT-11 |
UNIVERSAL TWIN LATCH RELAY SWITCHER 2-12 V |
|
|
ACT-12 |
QUAD SWITCH 2-12 V |
|
|
ACT-13 |
MICRO TWIN SWITCH 6V |
|
|
SWITCH-8 |
ADDS 8 SWITCH CHANNELS TO 1 CHANNEL RADIO |
|
|
SWITCH-16 |
ADDS 16 SWITCH CHANNELS TO 1 CHANNEL RADIO |
|
|
OTW-1 |
AUTO LEVELER |
|
|
ES-4 |
QUAD SWITCH - 20 V |
|
|
12 TO 6 |
VOLTAGE REGULATOR |
|
|
7 TO 5 |
VOLTAGE REGULATOR |
|
|
ACT-14 |
PICO FLASHER TO DRIVE UP TO 2 G.O.W. BULBS |
|
|
ACT-15 |
MICRO MOTOR MIXER USE WITH P 52, P 65 ONLY |
|
|
ACT-16 |
SMOKE GENERATOR 4.8 TO 6V OR 12 TO 14V. THIS TINY UNIT WILL PRODUCE REALISTIC SMOKE FOR YOUR ELECTRICALLY DRIVEN MODELS. RUNS OFF THE MAIN BATTERY AND DRAWS A LOW CURRENT. 10MM DIA. X 38MM LONG. |
|
|
ACT-16A |
SMOKE FLUID FOR ACT-16 50 ML OR BELOW. |
|
|
ACT-17 |
SUPER SMOKE GENERATOR 12V. THIS IS A SERIIOUS SMOKE GENERATOR THAT IS IDEALLY SUITED FOR LARGER MODELS. IT HAS A 50 ML BOTTLE OF FLUID AS THE MAIN TANK. 7MM DIA. X 36MM LONG. |
|
|
ACT-18 |
MULTI-FLASHER ALTERNATE SINGLE/DOUBLE FLASH, 6V TO 12V. THIS IS A LAMP DRIVER WITH 2 OUTPUTS EACH RATED AT 200 MA. |
|
|
ACT-19 |
TWIN FLICKER THIS FLASHER RUNS TWO ALTERNATE FLASH OPERATIONS, EITHER ALTERNATE DOUBLE FLASH OR ALTERNATE SINGLE FLASH. CAN BE USED TO SIMULATE: OIL LAMPS, CANDLES, IOEN FIRES AND ARC WELDERS. EACH OUTPUT RATED TO 200 MA. |
|
|
ACT-20 |
RX BATTERY ELIMINATOR 6V TO 12V INPUT 5V OUTPUT RATED FOR 1 AMP. |
|
|
48B-2W |
2-OUTPUT ELECTRONIC SWITCH. EACH OUTPUT RATED AT 10 AMPS. |
|
|
48B-4W |
4-OUTPUT ELECTRONIC SWITCH. EACH OUTPUT RATED AT 3 AMP. |
PART #
DESCRIPTION
PRICE

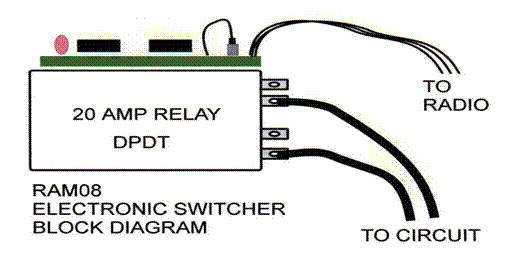

RAM 08
ELECTRONIC SWITCHER Provides control of various circuits such as lights, auxiliary glow plug battery and electric motors. Adjustable "on" point at any preferred stick position and is direction reversible. The circuit board is attached to the receiver and it controls a double pole, double throw relay which can be wired in a variety of ways to produce control of two separate voltage devices or reversing action for a motor. Controls up to 20 amps of current. The device is 1-1/2" x 1-1/4" x 1-1/2" and weighs 2 oz. A generic receiver plug is attached.
PRICE
RAM 30
4 WAY MULTI SWITCH with DUAL VOLTAGE OPTION This is a difficult product to describe because it does so much and all from a rotary switch device mounted directly to a single serve. It will control 4 individual accessories on one voltage and 2 additional ones can be operated simultaneously on another voltage. Perfect for all those scale options on your model.
RAM 32
SINGLE SPEAKER 4 SOUND SWITCH. New
This rotary
switch attaches to the top of a serve and allows you to feed up to 4 RAM
Digital sound devices through 1 speaker. A great space saver.
RAM 35
SIMPLE R/C SWITCH. This device is a 3/4 ounce solid state switch for loads up to 5 amps and 24 volts. Features include LED monitor, adjustable "ON" point, reversible adjustment. optically coupled and is controlled directly by your receiver. A generic receiver plug is attached. The ideal way to control RAM lighting systems on your model!
RAM - 64
9 VOLT AND 5 VOLT R/C POWER SOURCE.
Designed to power BOTH the 4.8 volt receiver system and RAM 9 volt light and sound
systems from batteries of 10.8 to 18 volts. This simplifies electrical
installations in boats since all systems can be powered by a single battery
The device delivers in excess of 1 amp for each voltage source and is both
overload and short circuit protected. The size is 1" x 3/4" x
1x1/8" and a screw terminal strip is provided for simple installation.
R/C FAIL SAFE DEVICES
|
PART # |
DESCRIPTION |
PRICE |
|
RAM 44 |
BOAT SAVER This device senses water in the bottom of your boat and turns on a bright warning light. Requires 6 to 12 volt battery. |
|
|
RAM - 45 |
BOAT SAVER WITH PUMP Our RAM 44 bilge water sensor is attached to a small pump so that the warning light signals you of water in the boat while the pump removes it. |
|
